Key Features
- Made from glass-filled fiber + Delrin for high strength and wear resistance
- Reduces fire hazard by avoiding direct metal-to-ground contact during impact
- Compatible with existing tank/engine guards

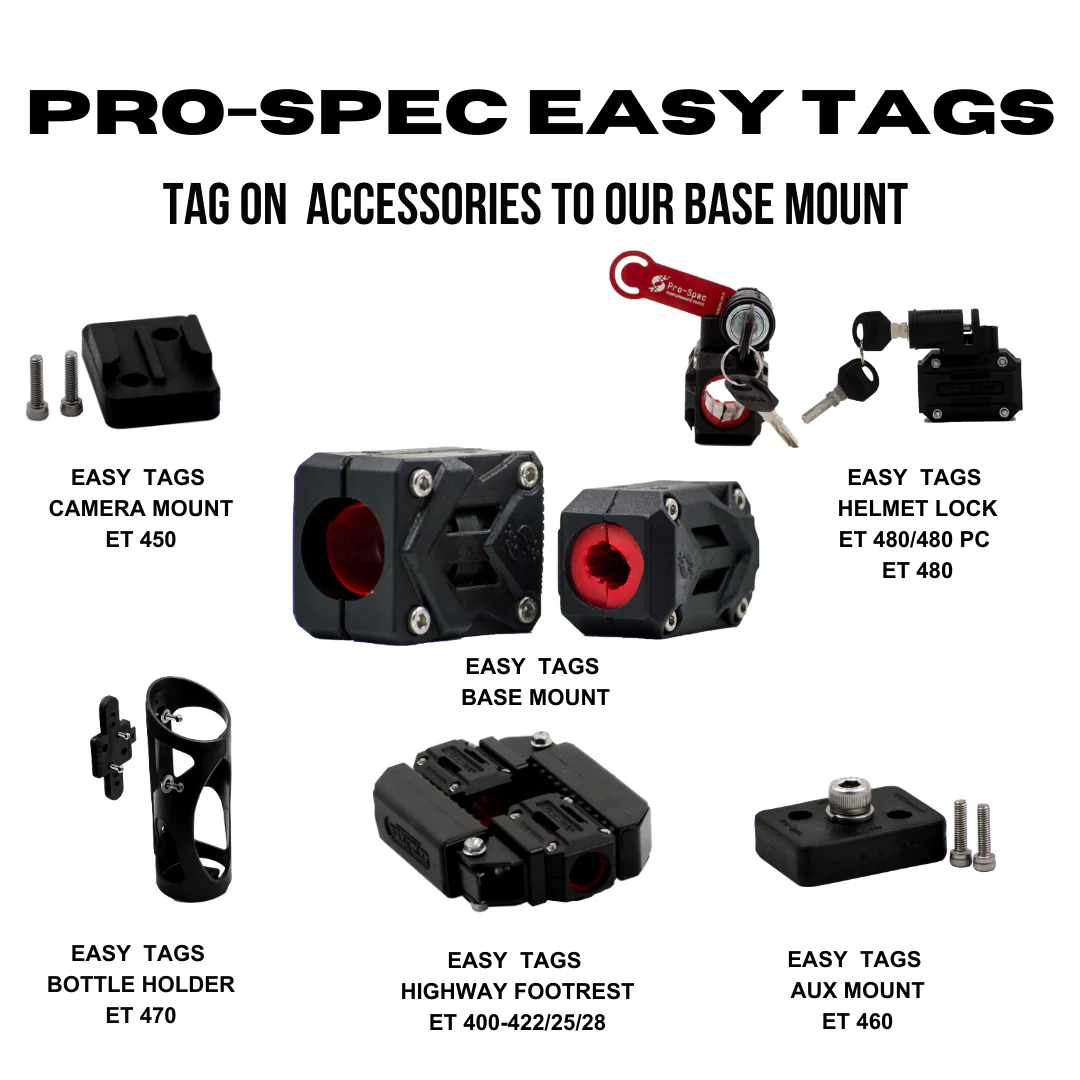

- Includes bolt-on provision for auxiliary attachments (e.g. bags, accessories)

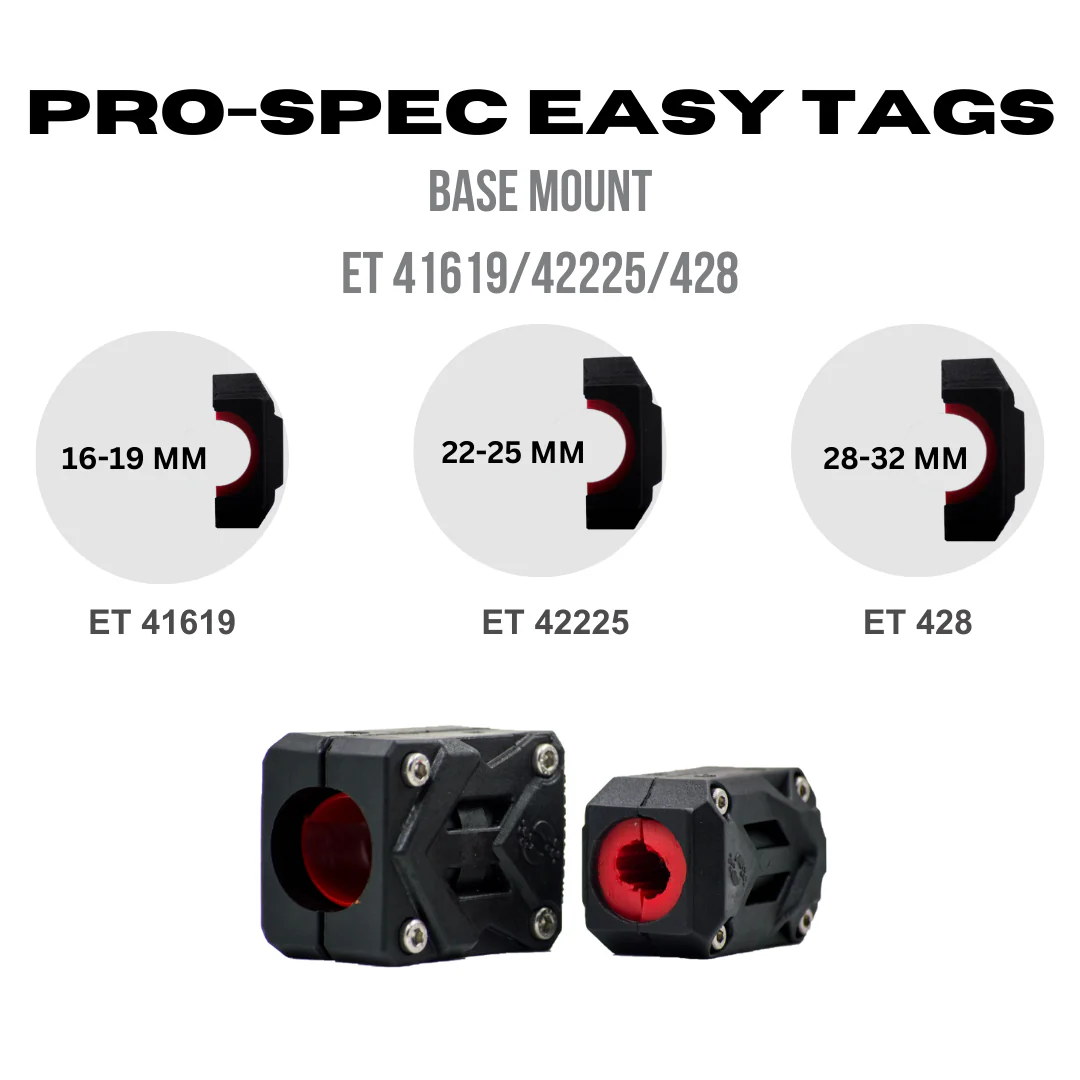

- Available in sleeve sizes: 22 mm – 25 mm
- Suitable for touring, off-roading, and daily use
Installation Guide
Follow these steps to ensure proper installation and performance:
Disassemble the Mount
- Using the provided 3mm Allen key , loosen all Allen cap screws.
- Separate the base mount into its two halves.
Insert Sleeves
- Choose the correct rubber sleeves using the chart below.
- Fit them into both halves of the base mount.
Clap to Guard
- Align the mount around your engine or tank guard tube.
- Make sure the inner tabs are on the same side of the mount.
Reassemble and Tighten
- Insert all screws and tighten them evenly using the 3mm Allen key provided.

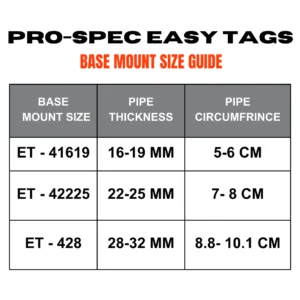

Sleeve Compatibility Chart
| Guard Diameter | Sleeve Combination |
|---|---|
| 16 mm | 2 x 16mm sleeves |
| 19 mm | 1 x 16mm + 1 x 22mm sleeve |
| 22 mm | 2 x 22mm sleeves |
| 25 mm | 2 x 25mm sleeves |
Included in the Package
| Sl. No. | Item Description | Quantity |
|---|---|---|
| 1 | Base Mount Body | 1 |
| 2 | 4×30 Allen Cap Screws | 4 |
| 3 | Rubber Sleeves (16mm, 22mm, 25mm) | 7 (3x ET41619, 4x ET42225) |
| 4 | 3mm Allen Key | 1 |
Size:
- 22 mm – 25 mm tubing
Important Notes
- Ensure all bolts are tightened securely and sleeves are correctly aligned.
- Periodically check for proper fit and fastening after long rides or off-road use.
- Though designed for DIY installation, professional installation is advised if uncertain.
Bike Compatibility
| Brand | Compatible Models |
|---|---|
| BAJAJ | Avenger Cruise 220, Dominar 250, Dominar 400 |
| BMW | G 310 GS, R 1200 GS, R 1200 GS Adventure, R 1200 GS Rallye, R 1250 GS, R 1250 GS Adventure, F 850 GS, F 900 XR, S 1000 XR |
| BENELLI | Imperiale 400, TRK 502, TRK 502 X, TNT 600 GT |
| DUCATI | Multistrada V4, Scrambler Desert Sled |
| ROYAL ENFIELD | TB X, Scram 440, Himalayan 450, Interceptor 650 (2018–2022), Interceptor 650 (2023+), Bear 650, GT 650 (2018–2022), GT 650 (2023+) |
| HONDA | XBlade, CB 200X, NX 500, CB 500X, Transalp 750, CRF1000L Africa Twin, CRF1100L Africa Twin DCT |
| HERO | Xpulse 200 2V, Xpulse 200 4V, Xpulse 200 Rally/Pro |
| HARLEY-DAVIDSON | 440X |
| HUSQVARNA | Vitpilen 250, Svartpilen 250 |
| JAWA / YEZDI | Jawa Classic, Forty Two, Yezdi Adventure |
| KTM | 125 Duke, 200 Duke, 390 Duke, 250 Adventure, 390 Adventure |
| KAWASAKI | Versys 300, Versys 650 (All models, incl. 2022+) |
| SUZUKI | V-Strom 250, V-Strom 650 XT, V-Strom 1000 |
| TRIUMPH | Speed 400, Scrambler 400, Street Twin, Street Scrambler 900, Bonneville T100, Bonneville T120, Bonneville, Scrambler 1200, Trident 660, Tiger 660, Tiger 800 XC, Tiger 800 XCA/XCX, Tiger 800 XR/XRX, Tiger 850 Sport, Tiger 900, Tiger 1200 XRX, Tiger 1200 GT/Rally Pro |
